Story
Technical details

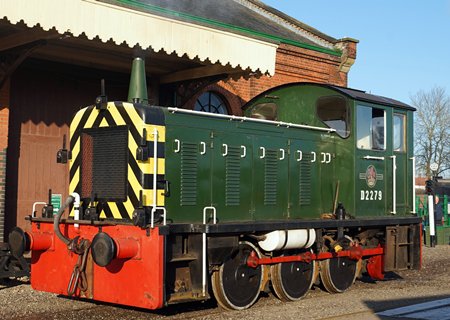

| Series | BR 04 |
| Set-up | C (C) |
| Length | 7940 mm |
| Diameter driving wheels | 1067 mm |
| Weight full | 31 ton |
| Maximum speed | 40 km/h |
| Technical details | The engine (Gardner 8 cylinder) was connected to a Wilson-Drewry CA5 R7 5-speed epicyclic gearbox. The final drive unit was mounted on a jackshaft connected to the wheels by coupling rods. |
| Remarks | These engine were an evolution of the earlier BR 03 class in combinarion of earlier B-engines. |
| Updated on | 15-04-2025 |
| Description | Gardner 8L3 |
| Engine set-up | L 8 |
| Power | 152 kW |
